Global Earthquake Monitor

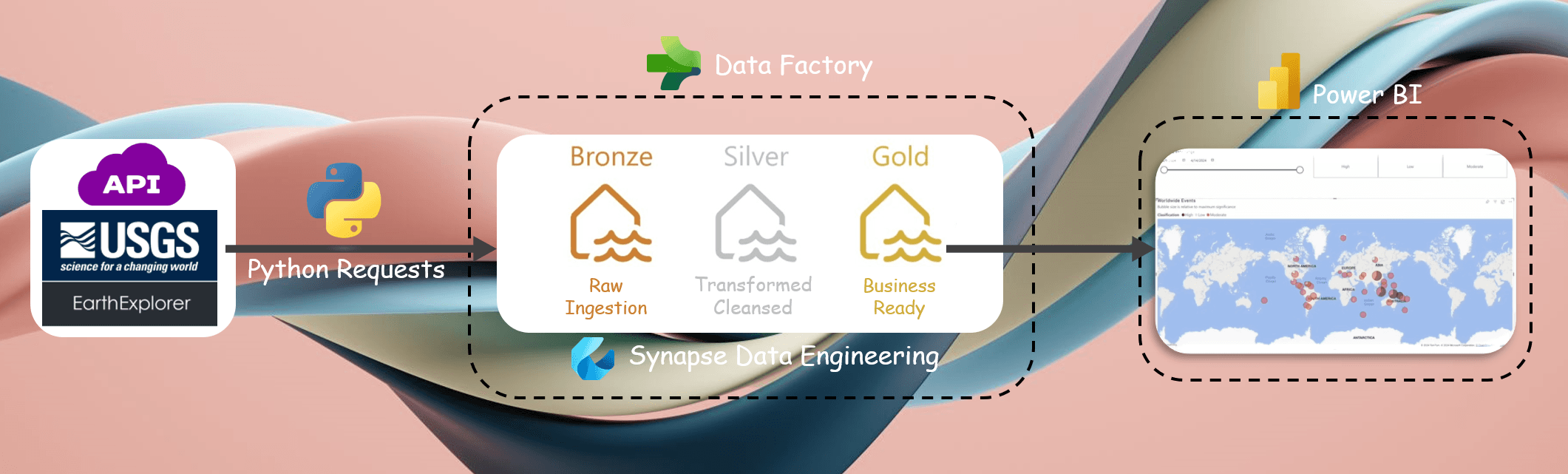

I first set up a lakehouse named earthquakes_lakehouse to store raw seismic data from the USGS API. It is the foundation for structuring the data with the Medallion architecture. Ingestion is done from a notebook in the lakehouse, using Python to call:

GET https://earthquake.usgs.gov/fdsnws/event/1/query?format=geojson&starttime=2014-01-01&endtime=2014-01-02

The data is then stored as Delta Lake tables, which bring ACID transactions, schema enforcement and time travel — a reliable, scalable format for the next stages.

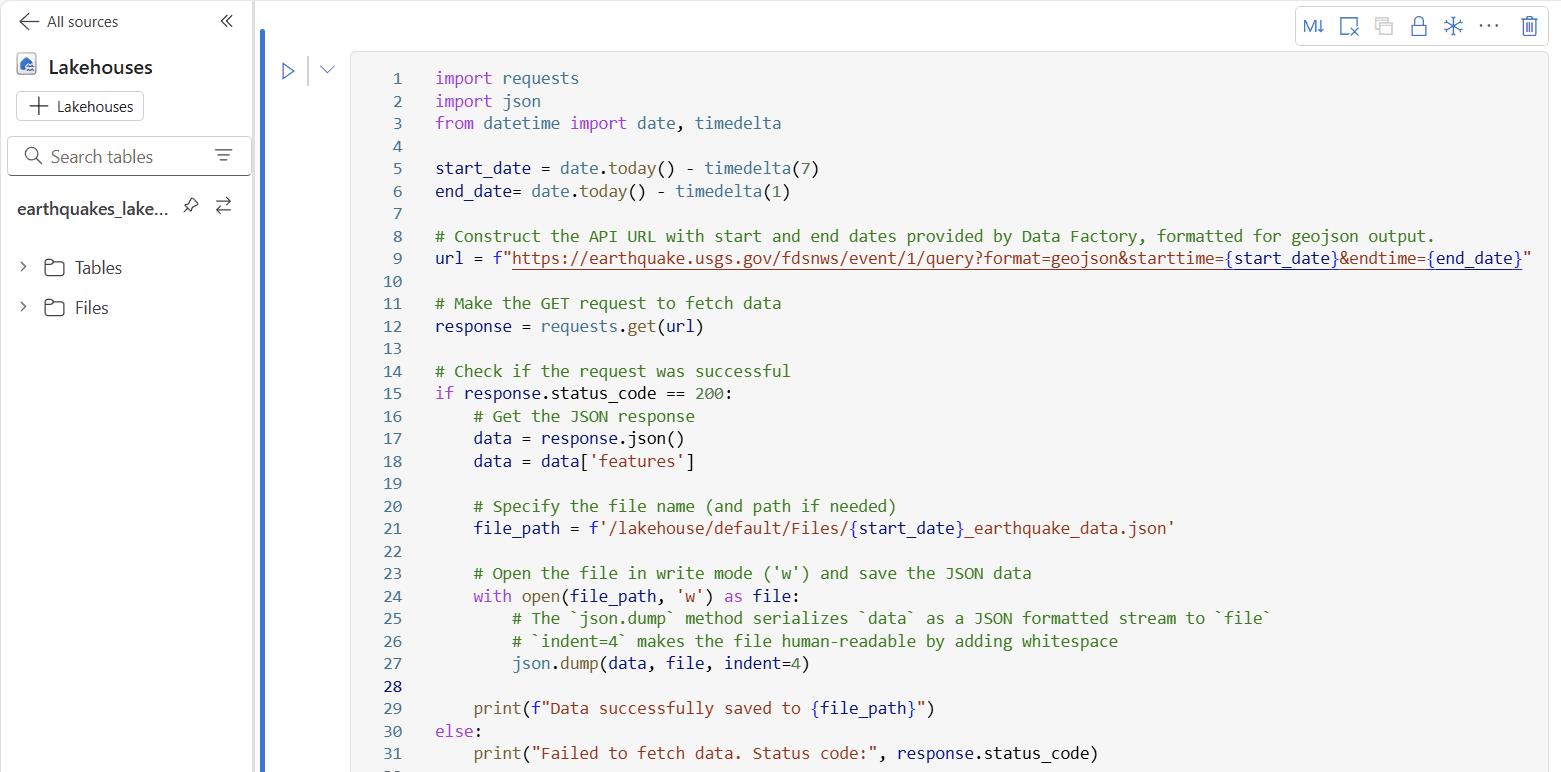

A Python script retrieves earthquake events from the API and stores them in the Bronze layer, over a rolling 7-day window so the dataset stays current.

1. 01Dynamic dates — start_date is seven days ago and end_date is yesterday; both are later parameterised from Data Factory.
2. 02API request — the script builds the URL with these dates, requests GeoJSON and keeps only the features field, which holds the events.
3. 03Lakehouse storage — on success, the events are saved as JSON in /lakehouse/default/Files/ with a dated filename (YYYY-MM-DD_earthquake_data.json).

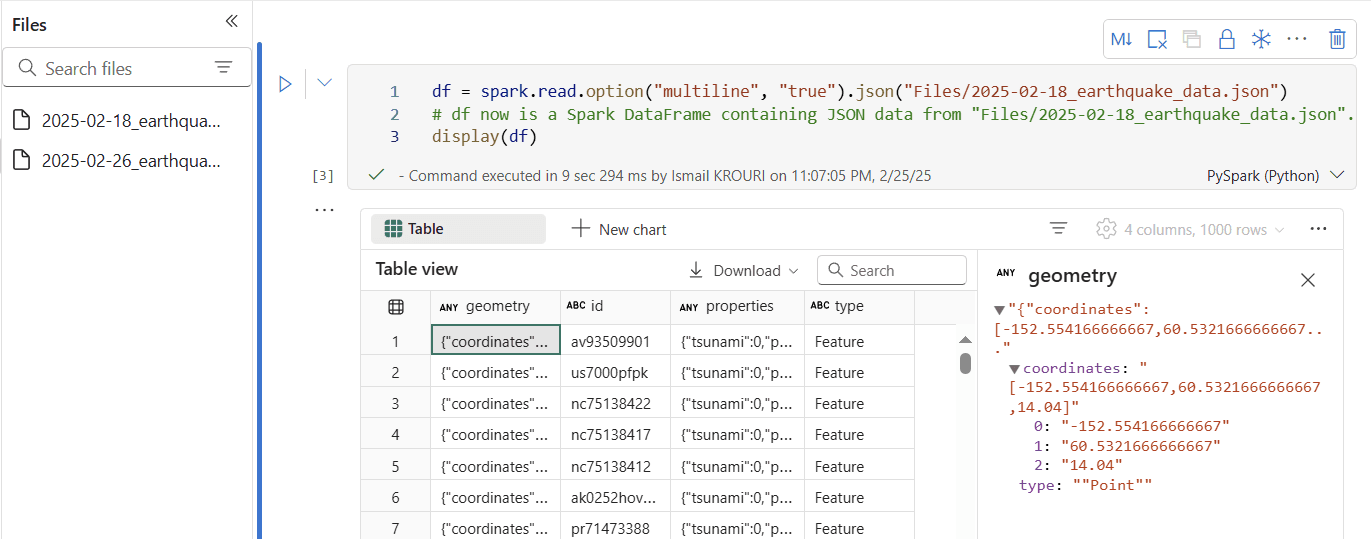

The JSON file is then loaded into a Spark DataFrame so the data can be progressively refined through the Medallion layers.


In the Silver layer the raw events are cleaned and structured: relevant attributes are extracted and meaningful transformations applied.

1. 01Extracting fields — nested JSON is flattened and renamed, focusing on location (latitude, longitude, elevation), magnitude, significance, timestamps and descriptions.

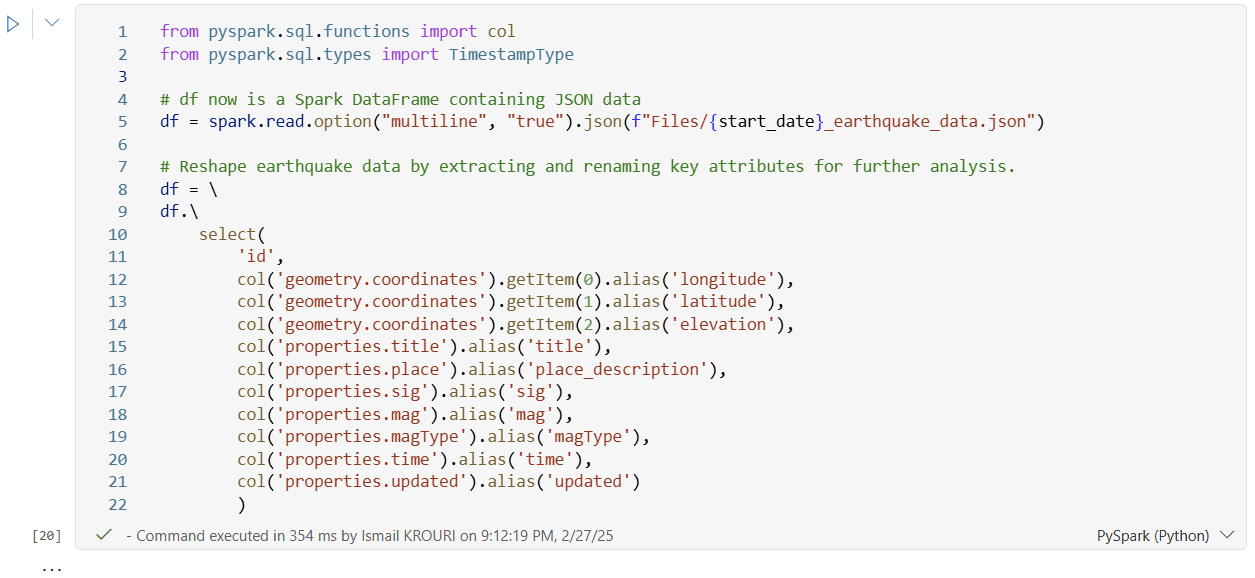

2. 02Reshaping — geometry.coordinates is split into longitude, latitude and elevation; properties provides title, place, significance (sig), magnitude (mag), magnitude type (magType) and timestamps.

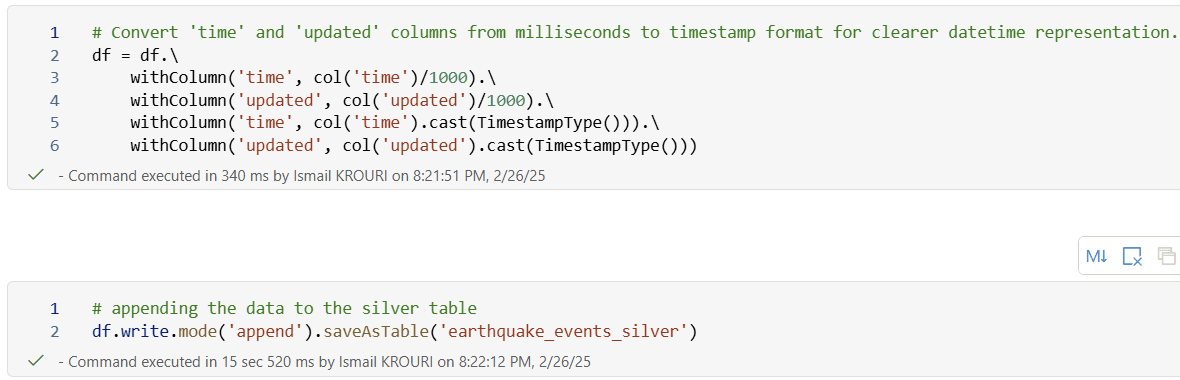

1. 01Readable timestamps — time and updated are stored as Unix epoch milliseconds and converted to standard timestamps.
2. 02Silver table — the cleaned data is persisted to earthquake_events_silver in append mode, so new events are added without overwriting history.

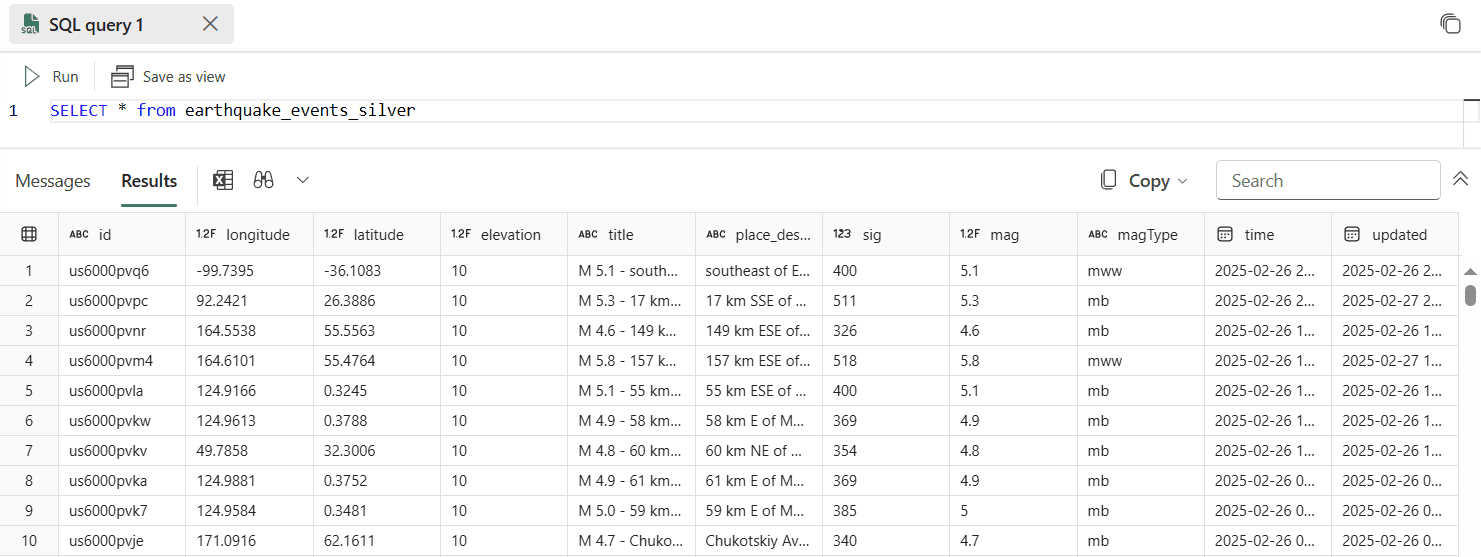

3. 03Querying — the Silver table can be explored with SQL directly in the lakehouse.

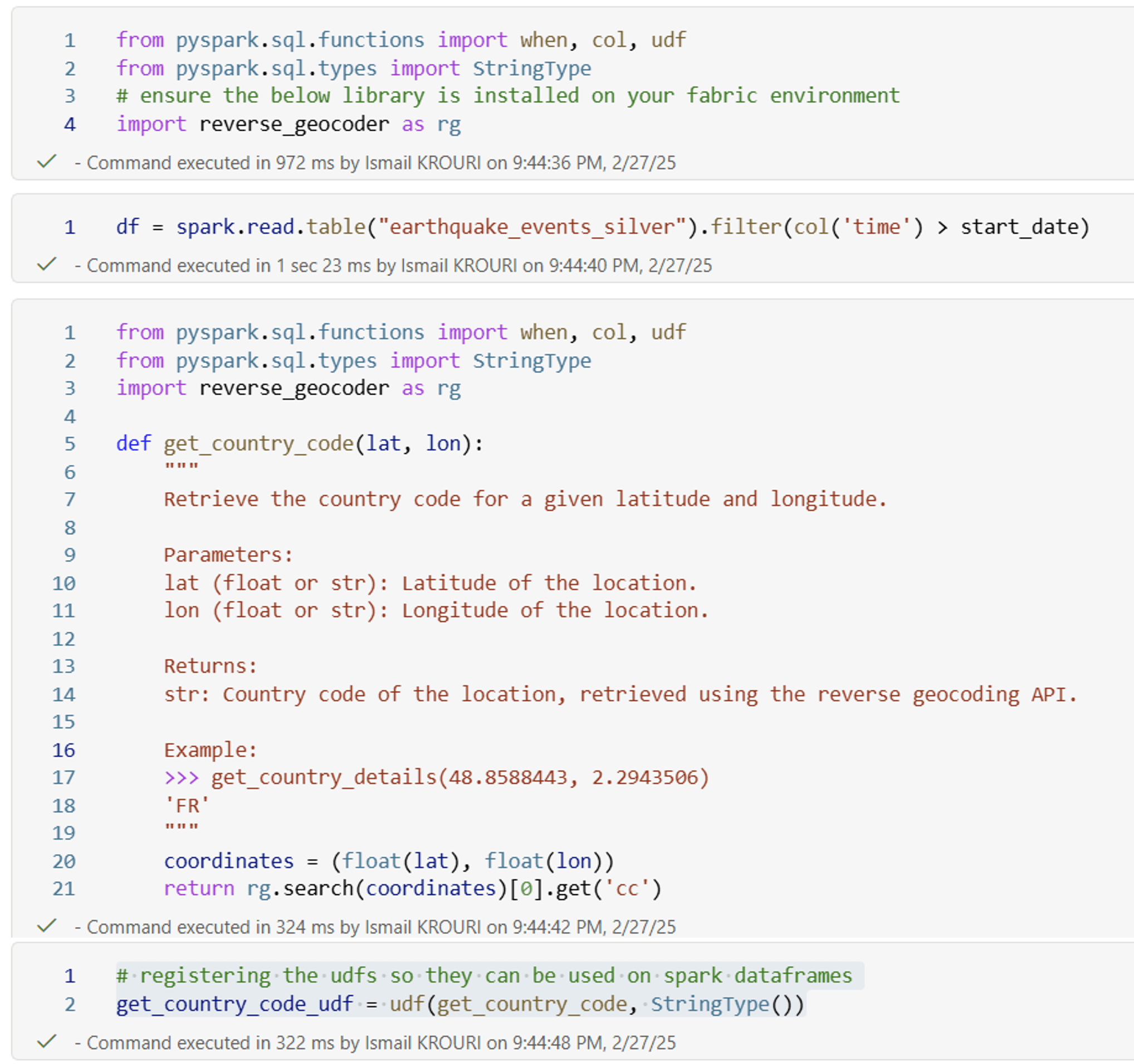

• →Only recent events (after start_date) are read from Silver for processing.
• →The country code is derived from latitude and longitude with the reverse_geocoder library.
• →Because Spark works on distributed data, get_country_code is registered as a UDF to be used in transformations.

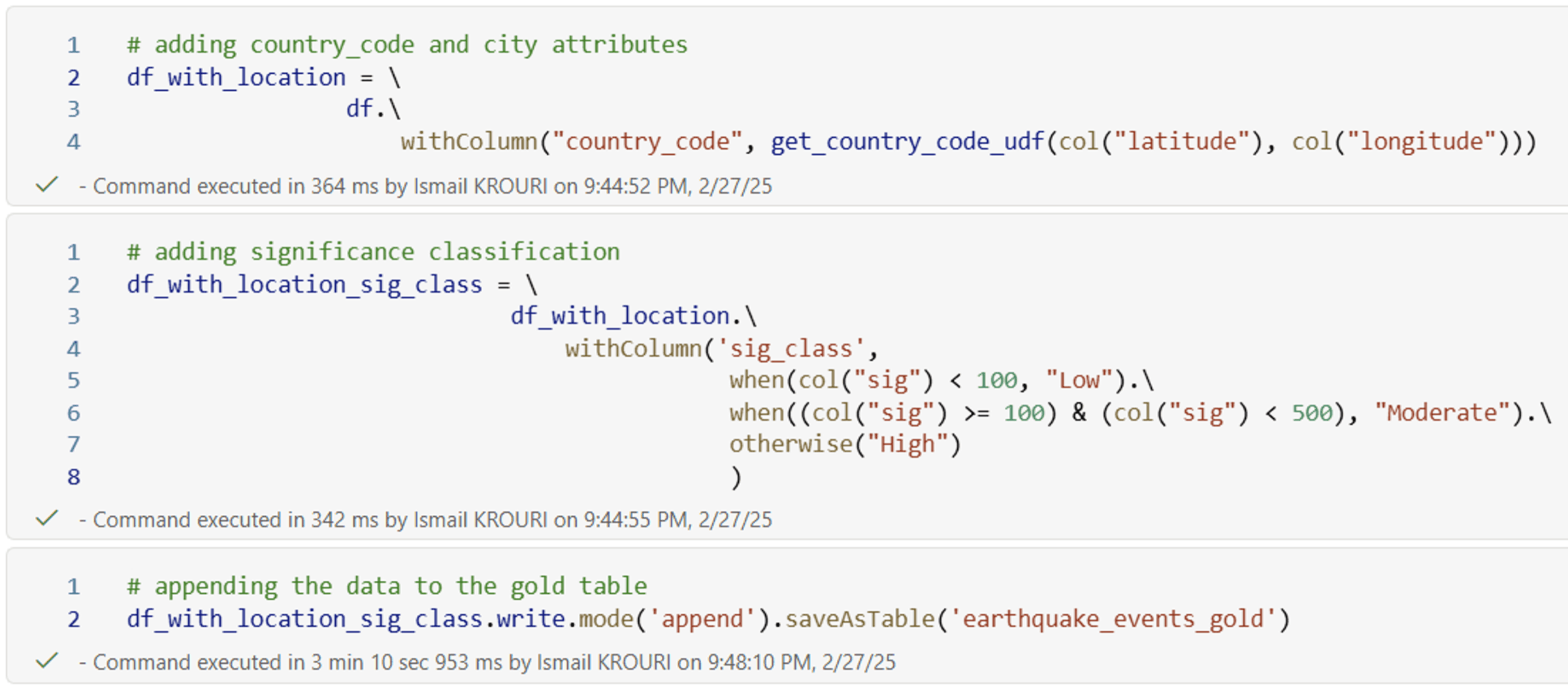

1. 01Country code — get_country_code_udf adds a country_code column for geographic analysis.
2. 02Significance classes — events are classified as Low (sig < 100), Moderate (100 ≤ sig < 500) or High (sig ≥ 500).

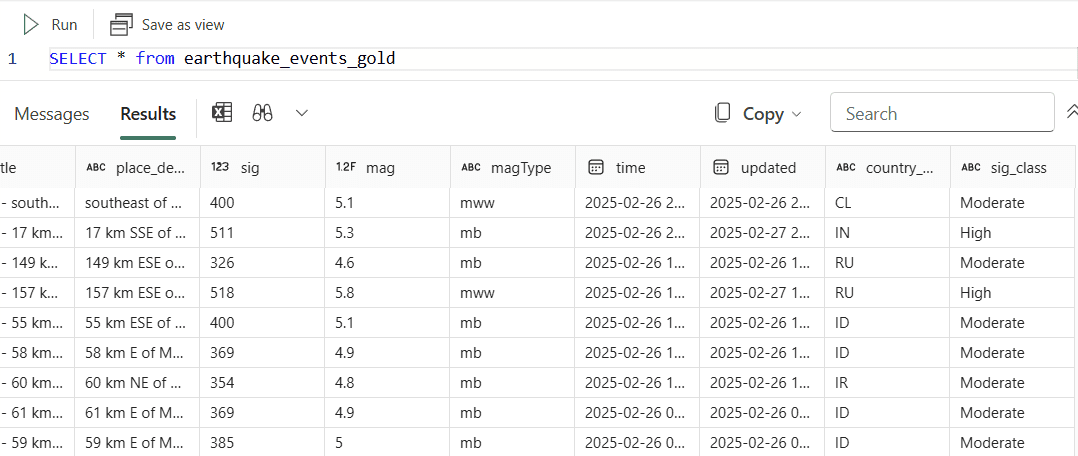

3. 03Gold table — the refined DataFrame is appended to earthquake_events_gold.

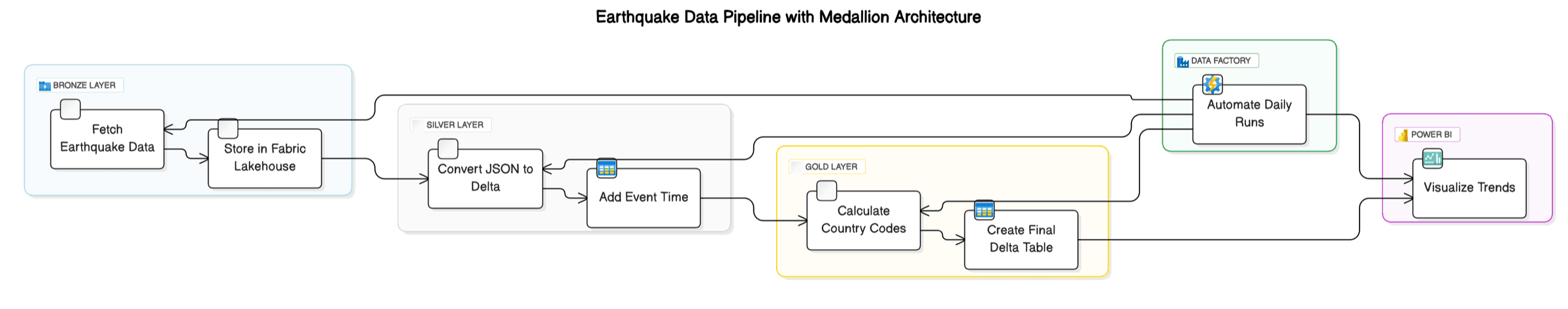

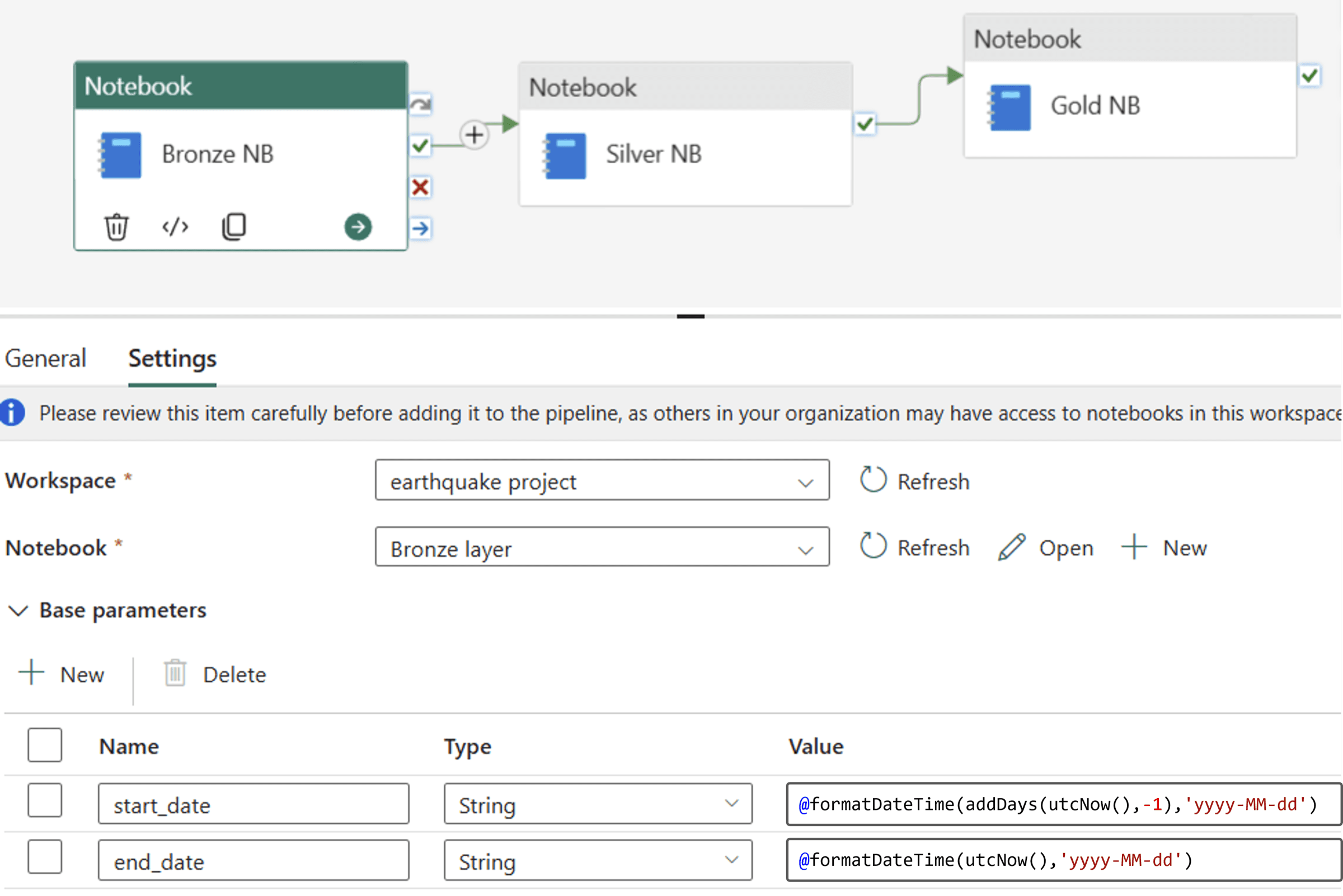

A Data Factory pipeline runs the three notebooks every day, in order:

1. 01Bronze Notebook — runs the raw ingestion with dynamic parameters: start_date → yesterday, end_date → today.
2. 02Silver Notebook — chained on success, receives start_date.
3. 03Gold Notebook — chained on success, receives start_date.


The whole workflow is now automated: Bronze, Silver and Gold run sequentially on a schedule, so fresh earthquake data is available every day without manual intervention.

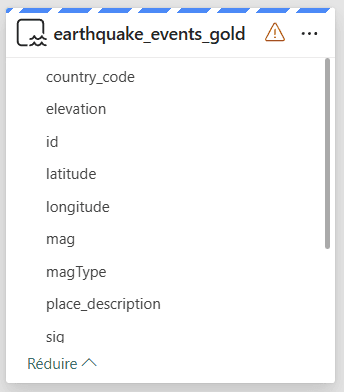

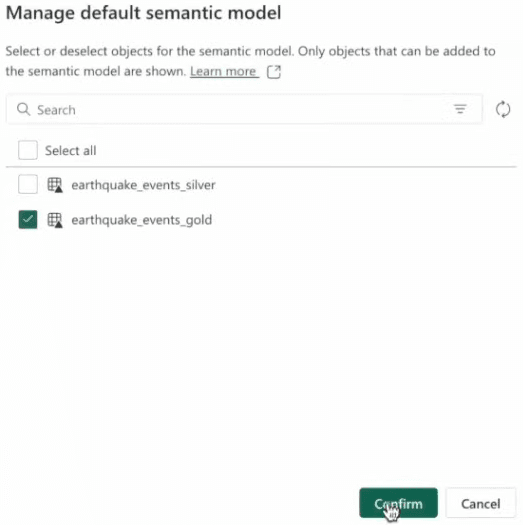

On top of the Gold layer, a semantic model defines relationships and calculated measures so that analysis and visualisation in Power BI are efficient.


The final report visualises global seismic activity. Users filter by date range and significance (High, Moderate, Low); the map sizes each bubble by significance, and KPIs show the total number of earthquakes and the maximum significance.
